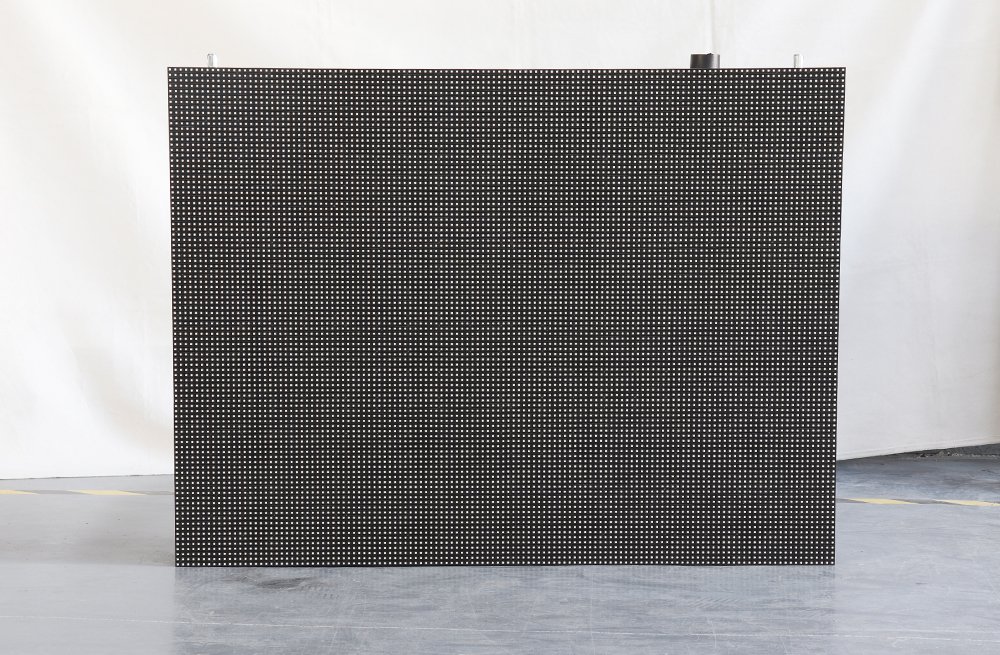

Thanks to our Spanish customer for the order. According to his requirements, we suggest to buy P8 outdoor fixed installation LED waterproof display. P8mm LED module using SMD3535 lamp beads and MBI5124 driver, the size is 256x128mm. The module is installed in a 1024x768mm internal straight-through iron cabinet with a total of 12 cabinets. The installation size is 4.096×2.304m.
This products is the Outdoor Fixed Installation LED Screen Series.
High quality P5 256×128 outdoor LED module.
The brightness reaches 6500 cd/㎡, the size of the module is 256x128mm, the refresh rate reaches 3840Hz, and the back has been sprayed with three anti-paints, which can be combined with high-quality cabinets to achieve IP65 protection.
Use Colorlight 5A-75E receiving card, this type of receiving card can not only use common sending devices such as sending card, but also can use a computer to directly output signals through the network cable interface.
Single card supports 32 groups of RGB signal output. Maximum load 256×512 pixels.
Use high-quality MEAN WELL NEL-400-5 LED power supply, automatically adapt to wide voltage.
Input: 180-264VAC
Output: 5V 80A

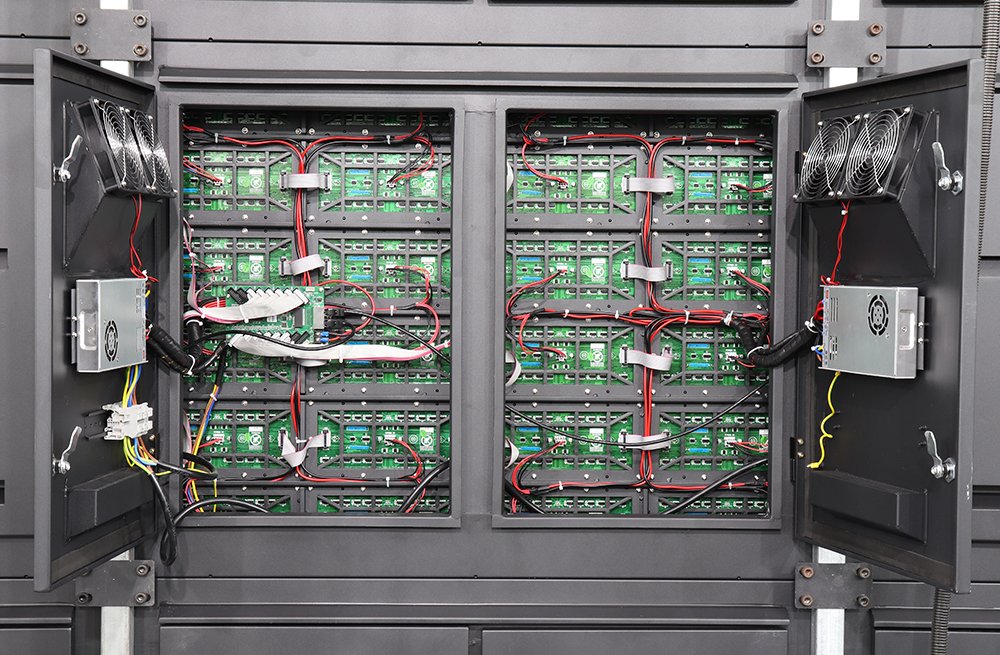

4 high quality cooling fans installed in each cabinet
The handle allows the installer to better secure the cabinet. The handle is placed in a special groove and does not take up extra space.
Open holes at the top, bottom, sides, and sides of the cabinet to allow network cables and power cables connected between the cabinets to pass through here. In this way, the outside of the cabinet will be very neat and no extra wires will be seen.
The waterproof eaves and the high-quality waterproof sealing strip on the back of the cabinet ensure that users do not need to worry about the risk of water ingress during normal use.
Because the cable passes through the cabinet, the power cable and signal cable must be removed when removing the LED display. Using this power terminal will make the operation more convenient.
Fixed Installation P8 Outdoor Waterproof LED Screen
