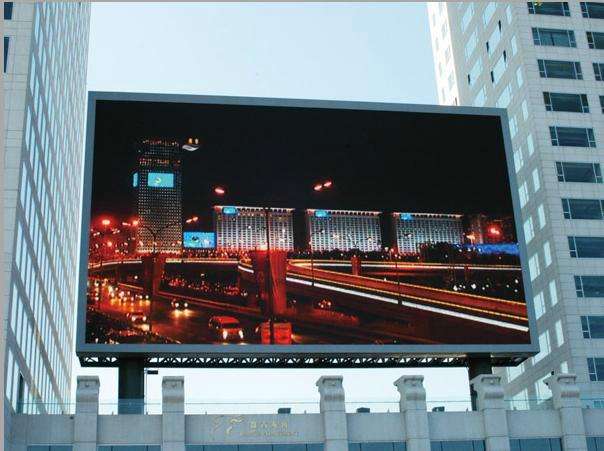

LED Displays are very common in our lives and bring a lot of convenience to our lives. Since the brightness of the display cannot be changed with the ambient light.
There is a problem of unclear display during the day or dazzling at night due to being too bright. If the brightness can be controlled, not only energy can be saved, but the display effect of the display can be made clearer.
Here Are Four Core Technologies For Automatic Brightness Adjustment Of LED Screen Brightness:
1. LED Display is a green light source, its main advantage is high luminous efficiency. With the development and progress of material science, the luminous efficiency will be greatly improved in the next 10 years, with low energy consumption, long service life, recyclable materials, and no pollution to the environment.
Although our country started late, in recent years it has also begun active research and development and industrial policies and support.
Compared with the incandescent lamp, the LED displays have a significant difference: the brightness of the light is basically proportional to the forward current of the light-emitting diode.
Taking advantage of this feature, the brightness of the surroundings is measured by optical sensors, and the luminous brightness is changed according to the measured value, keeping the effect of the change in the brightness of the surroundings and transferring people to happy work.
This not only creates a comfortable environment with constant brightness, but can also make full use of natural lighting and greatly save energy. Therefore, the research on LED displays adaptive dimming technology is particularly important.
2. Basic principle: The design adopts column sending data and scanning method to realize LED Displays text or image.
This method is combined with the hardware circuit to achieve the purpose of relatively uniform overall brightness of the LED Display.
Utilize the sensitive characteristic of the photo resistor to ambient light, collect the change of ambient light, convert it into electrical signal and send it to the single-chip microcomputer, the single-chip processor performs signal processing, and controls the duty ratio of the output PWM wave according to a certain rule.
A switch voltage regulator circuit is added between the single-chip microcomputer and LED Displays to realize the brightness adjustment of the display by the single-chip microcomputer.
The adjusted PWM wave is used to control the switching voltage regulator circuit to adjust the input voltage of the LED display, and finally realize the brightness control of the display screen.
3. An adaptive brightness control circuit for a light emitting diode display, characterised in that it comprises: a duty cycle preset value input device, a counter and a size separator.
Wherein the counter and the duty cycle preset value input device respectively input a count value and a duty cycle preset value into the size separator for comparison to control an output value of the separator.
4. Hardware design of LED display adaptive dimming system:The brightness of LED is proportional to the current flowing through it in the forward direction, and the size of the forward current can be adjusted to adjust the brightness of the LED.
Currently, the brightness of the LED is generally adjusted by adjusting the working current or pulse width modulation. The former has a large adjustment range, good linearity, but high power consumption. So it is rarely used.
The pulse width modulation method uses a higher frequency to switch the LED, the switching frequency is beyond the range that people can perceive, so that people do not feel the existence of strobe. Realize LED adaptive dimming.
