The order uses outdoor P10 module with size 160x160mm; the lamp beads use Nation Star DIP346, high refresh rate driver IC to ensure the brightness and refresh rate of the LED display.
The display size after installation is 1.92×1.28m

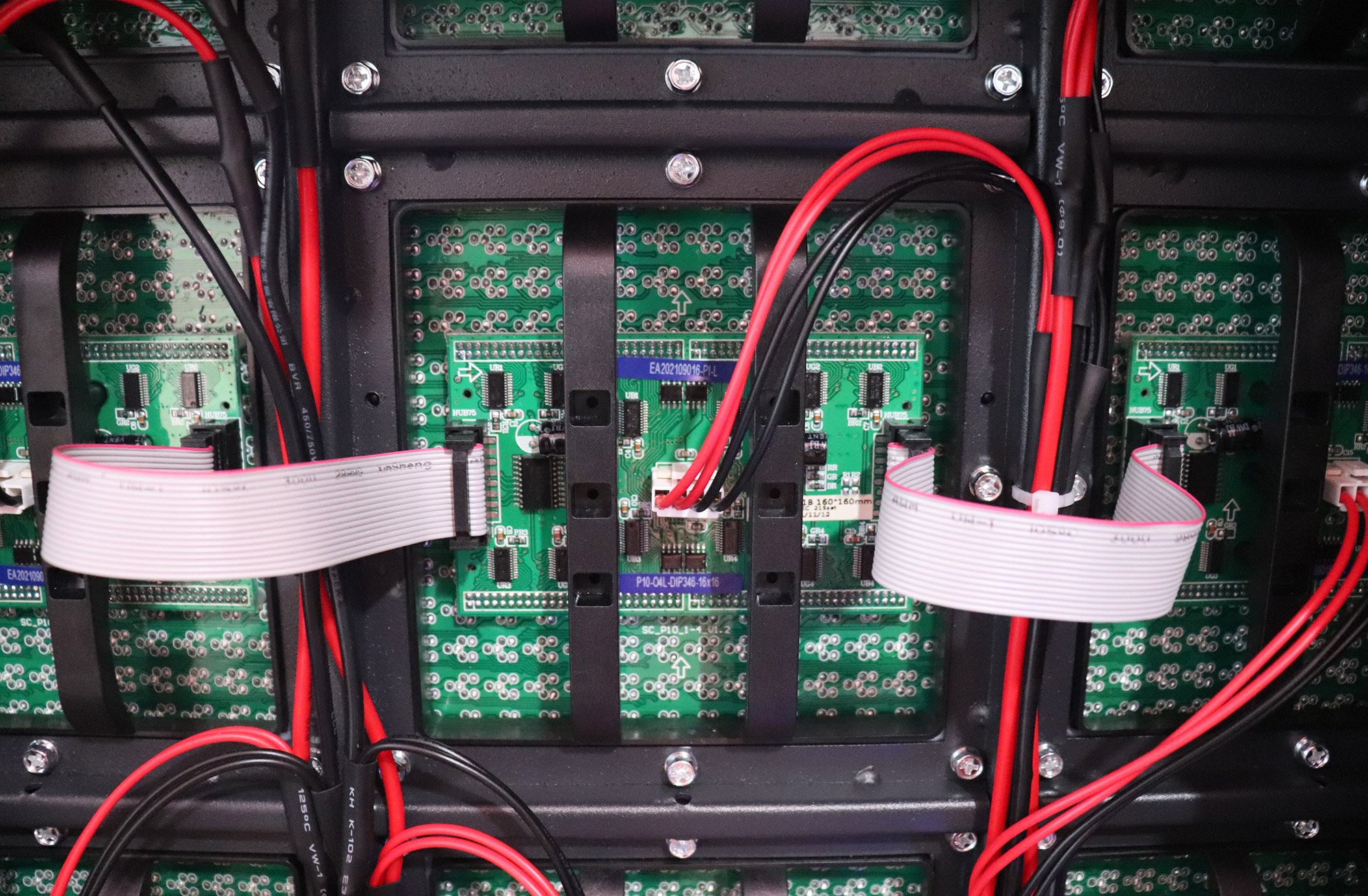

High quality P10 160×160 In-line outdoor LED module.
The brightness reaches 6000cd/㎡, the module size is 160x160mm, the refresh rate reaches 1920Hz and can be combined with a high quality cabinet to achieve IP65 protection.
Use the new Novastar receiving card DH7508. The DH7508 is a new receiving card developed by NovaStar.
The power supply uses high quality South creative’s NDA200HS5
Input: 200-240VAC
Output: 5V 60A

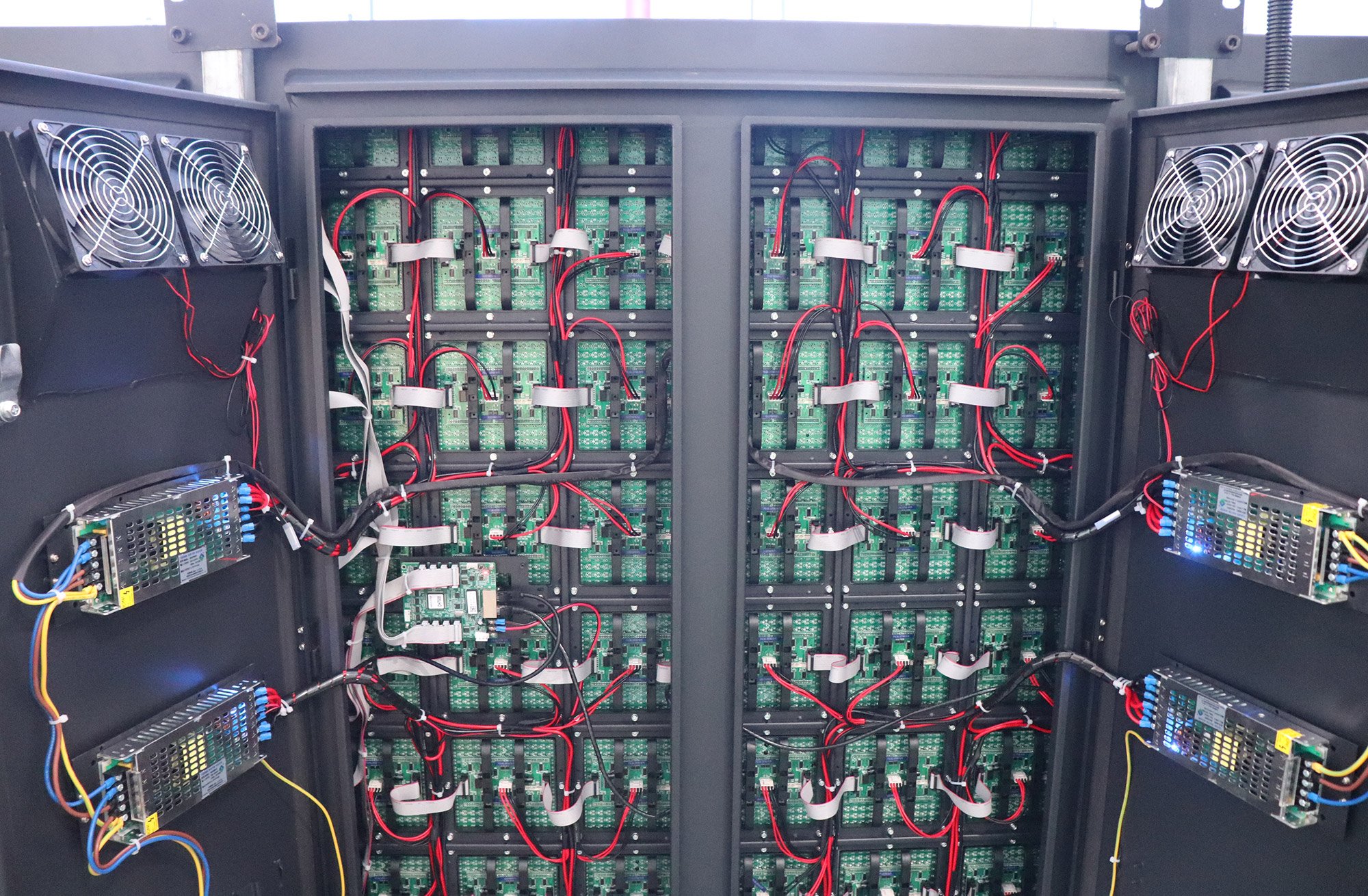

4 high quality cooling fans installed in each cabinet
The video of P10 Outdoor Fixed Installation 960x1280mm LED display To USA
