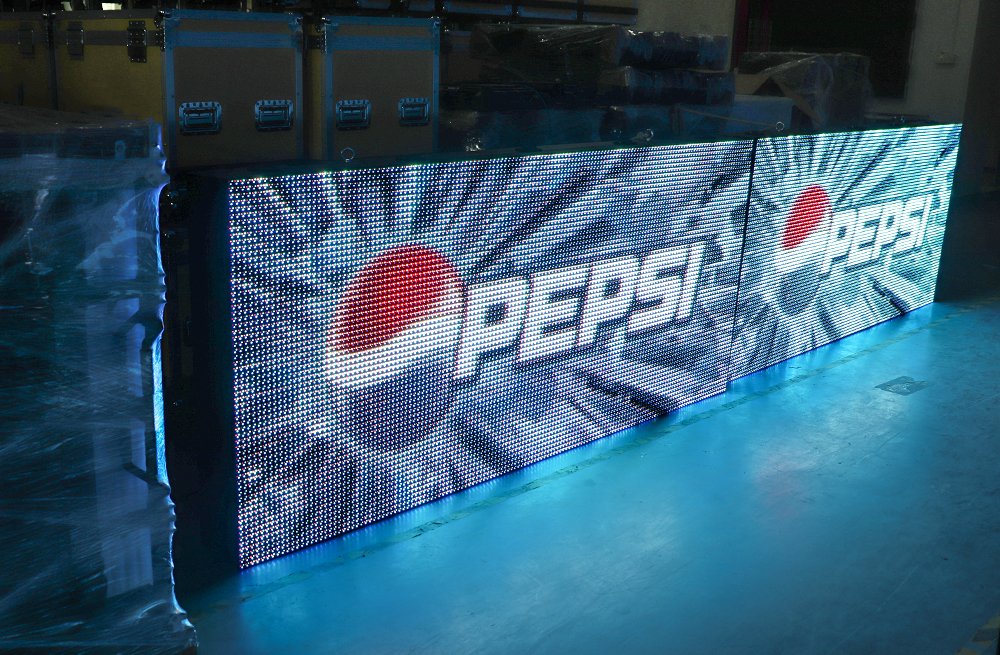

P16 Outdoor Front Open LED Screen in USA
Eagerled P16 Outdoor Front Open LED Screen in USA, high brightness high contrast with ICND2153AP driver IC and DIP LED to ensuer high quality LED video wall. This project adpot P16 DIP346, brightness about 8000cd / sqm.

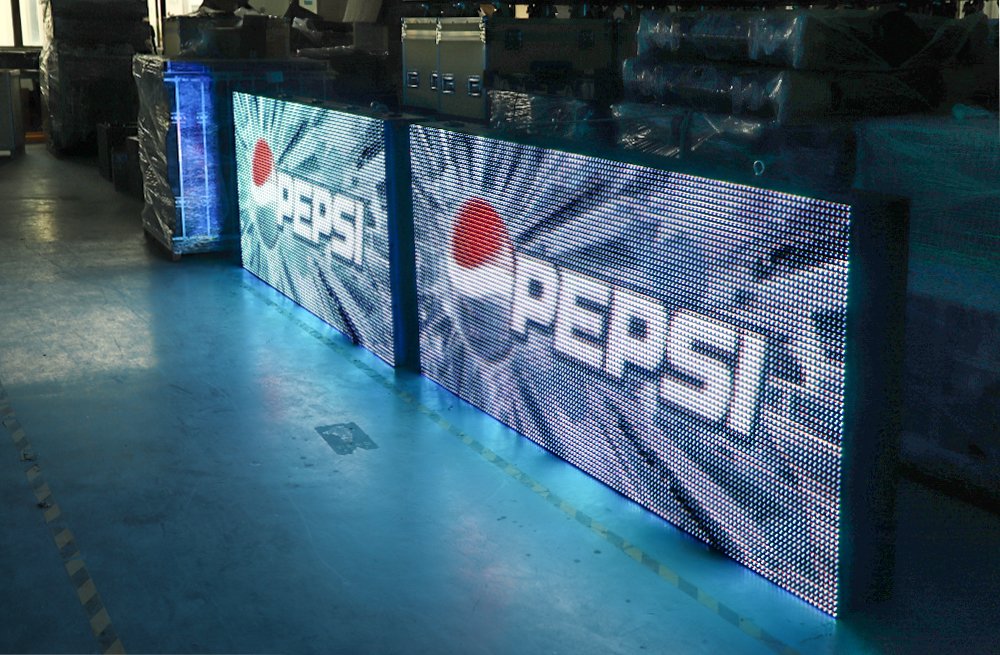

P16 Outdoor Front Open LED Screen Overview
LED Type: DIP346
Module Side: 256×256 (mm)

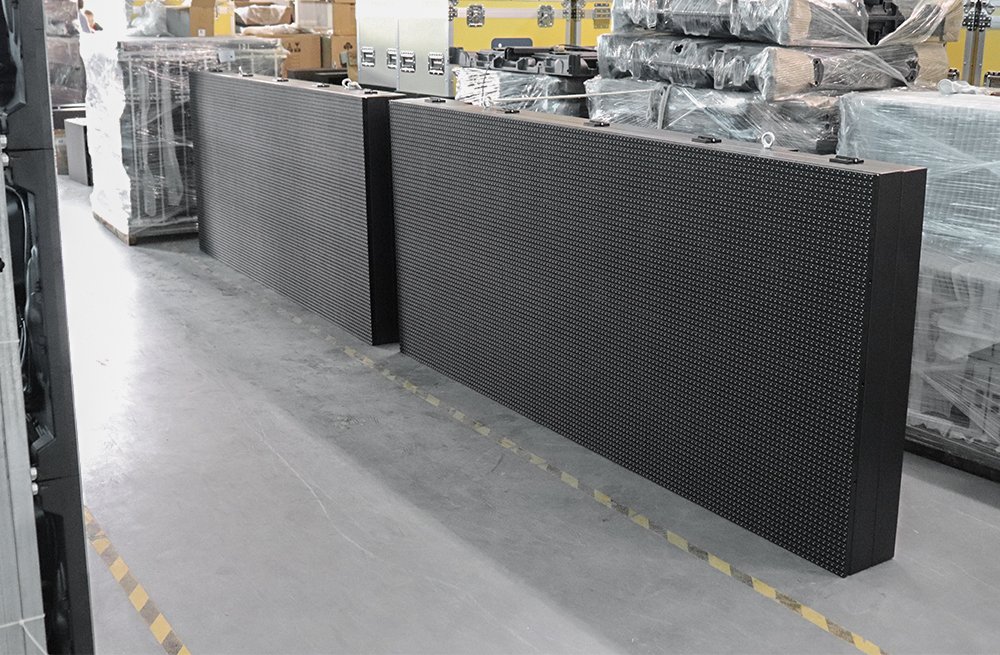

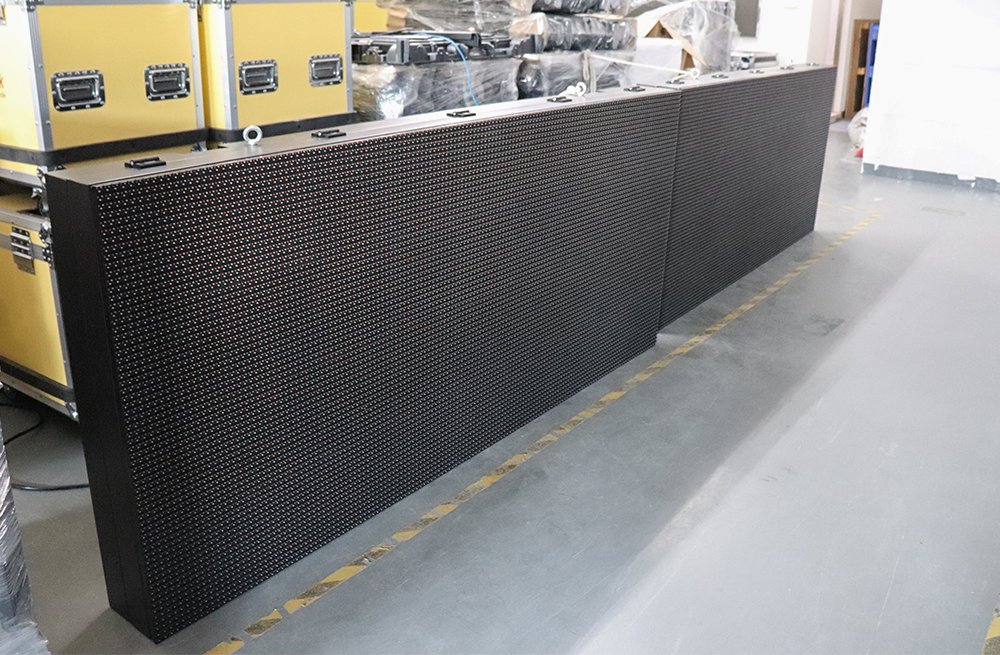

Cabinet Side: 2304×1024 (mm)
Cabinet Quantity: 2 Pcs
Installation method：Outdoor back to back hanging
Display Side：2.304m * 1.024m
P16 Outdoor Front Open LED Screen contains:
Led module: P16 256x256mm Static state (1 Scan) module.

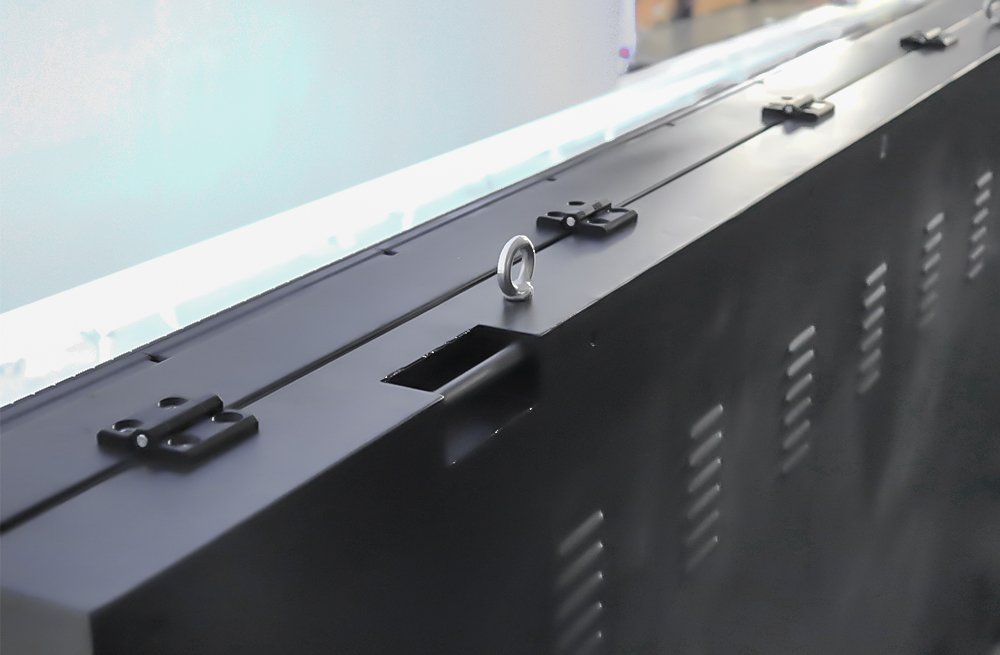

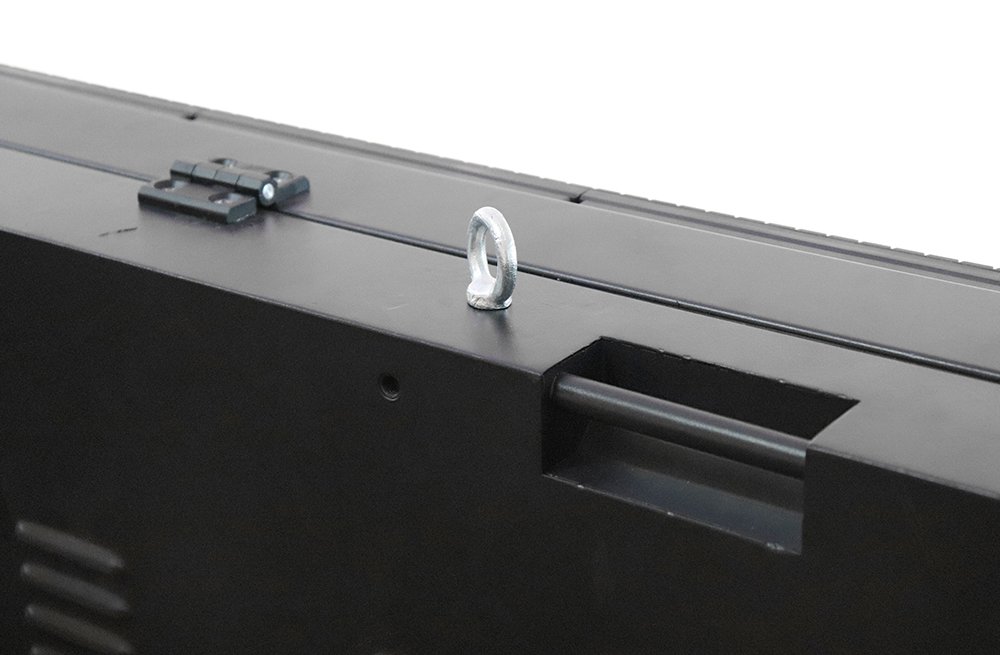

Cabinet: High quality iron cabinet.
Control system: Huidu asynchronous control card HD-C15C with Wi-Fi:
Huidu receiving card R501.
Power supply:
Model: Meanwell LRS-350-5
Input Voltage: AC88V~AC132V or AC176V~AC264V 47Hz~63Hz selected by switch.
Output Voltage: DC5V 60A 300W
Cooling Method: Forced air cooing by built-in DC fan
