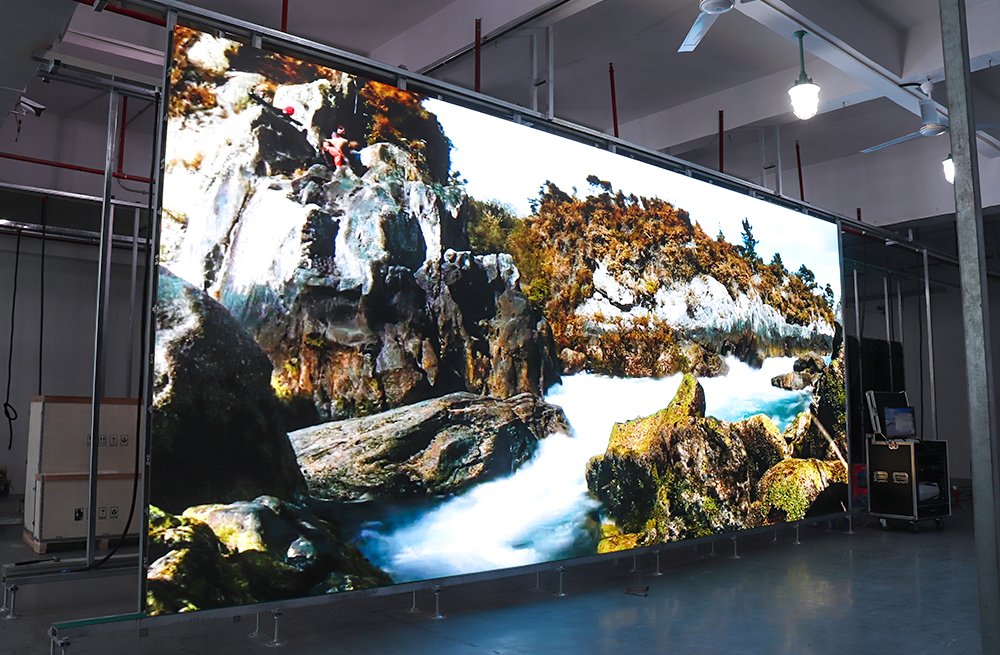

P2.5 480×480 Indoor Die-cast Magnetic Front Service LED Screen to Kuwait
Eagerled has just make this P2.5 front service LED display for our Kuwait customer. It has high brightness, high contrast ratio with MBI5153AP driver IC and Kinglight LED to ensure high quality LED video wall. This project adopt P2.5 SMD2121, with white balance brightness as 1000 CD/sqm.
P2.5 480×480 Indoor Die-cast Magnetic Front Service LED Screen Overview
LED Type: SMD2121
Module Side: 160×160 (mm)
Cabinet Side: 480×480 (mm)
Cabinet Quantity: 86 Pcs

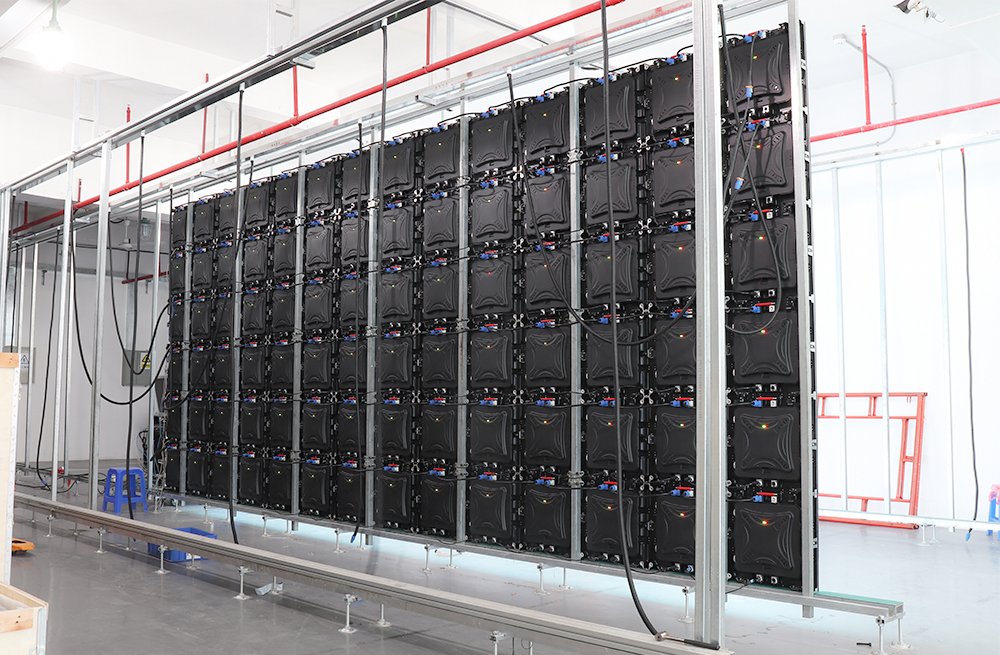

Installation method：14×6 cabinets per display and 2 spare parts.
Display Side：6.72m * 2.88m
P2.5 480×480 Indoor Die-cast Magnetic Front Service LED Screen Contains:

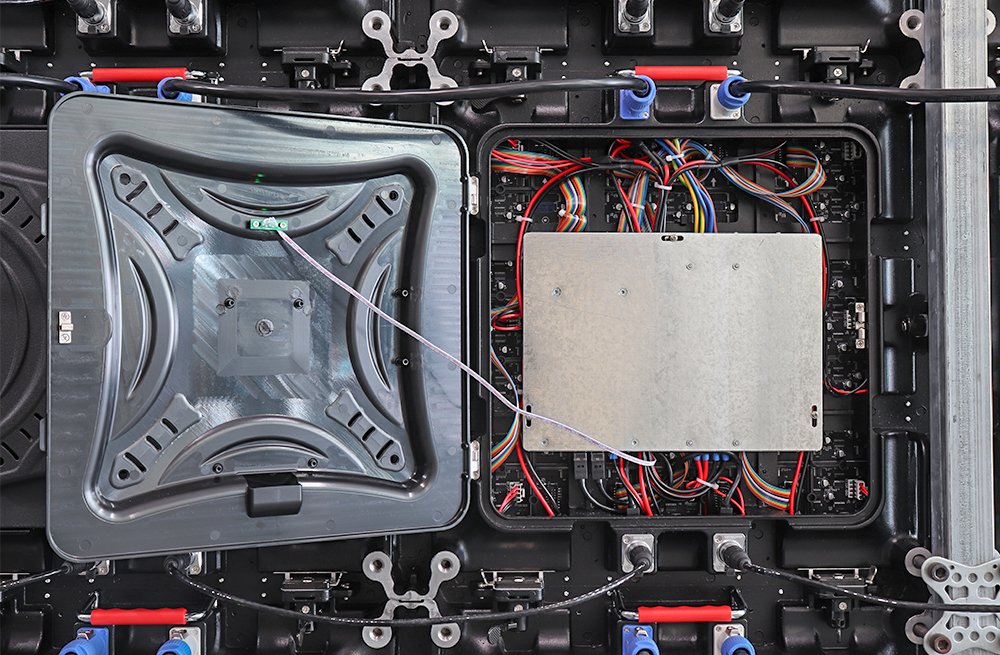

Led module: P2.5 160x160mm 32Scan module.

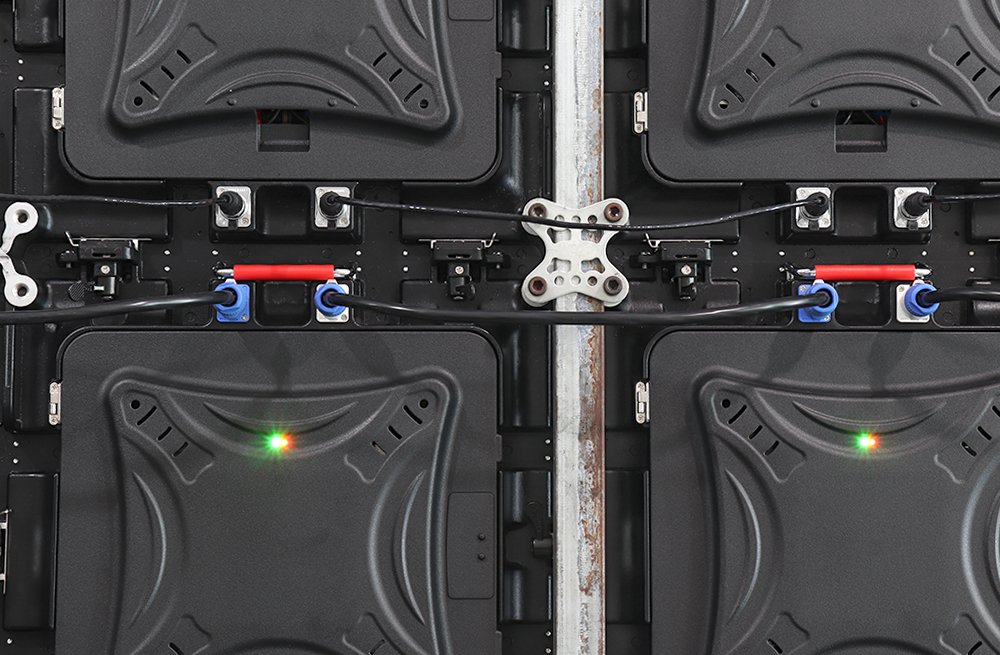

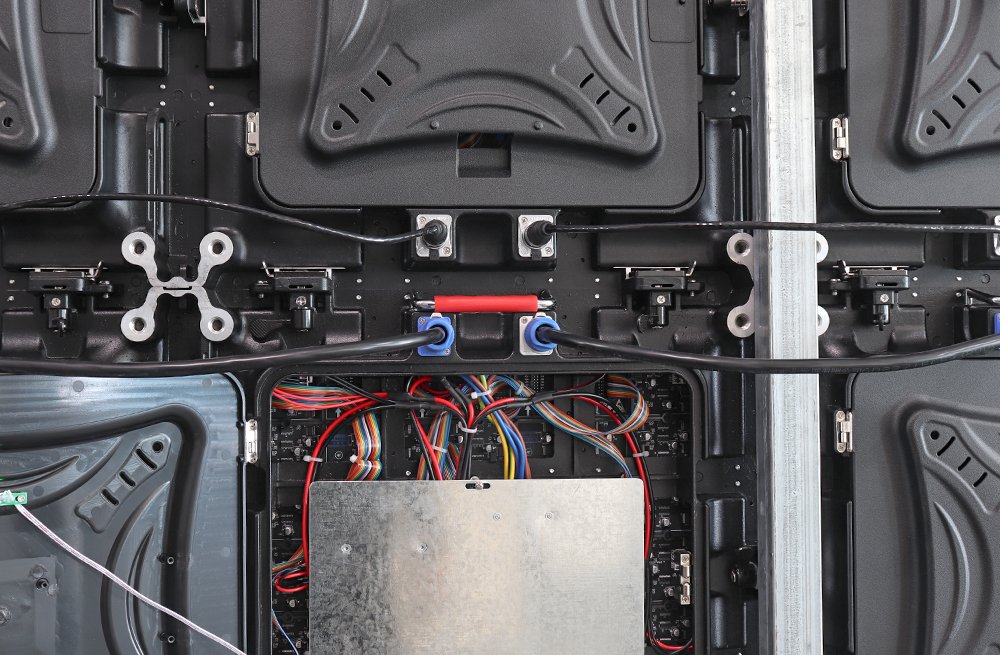

Cabinet: High quality Die-cast cabinet.
Control system: Novastar Video Controller MCTRL4K;
Novastar receiving card MRV336
Power supply:
Model: Meanwell UHP-200A-5
Input Voltage: AC100V~AC240V 2.5A 50/60Hz
Output Voltage: DC4.2V; DC4.5V; DC5V, 4.0A.
Cooling Method: Active cooling，Fanless
The video of Eagerled P2.5 480×480 Indoor Die-cast Magnetic Front Service LED Screen
