We have completed P6 outdoor rental LED display for Congolese customers. There are a total of 2 LED screens, each of which has 36 576x576mm LED cabinets. The outdoor LED screen shows very good results.
The order uses P6 outdoor LED module with size 192x192mm; the lamp beads use SMD3535, high refresh rate driver IC to ensure the brightness and refresh rate of the LED display.
The LED display size after installation is 3.456×3.456m
High quality P6 outdoor rental LED display
High quality P6 192×192 outdoor LED panel.
The brightness reaches 5500cd/㎡, the module size is 160x160mm, the refresh rate reaches 1920Hz and can be combined with a high quality cabinet to achieve IP65 protection.

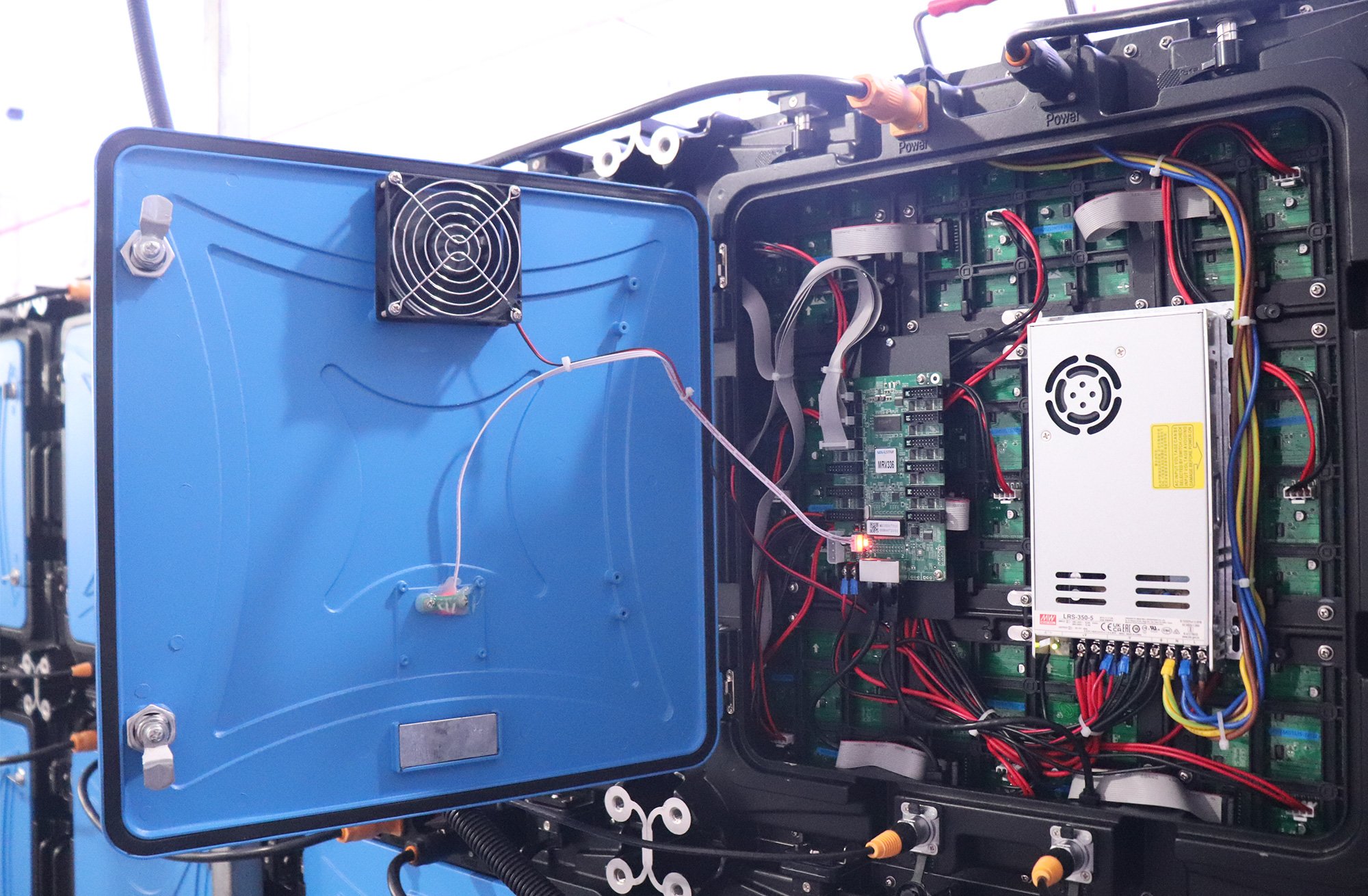

Control Card
Use the new Novastar receiving card MRV336. The MRV336 is a new receiving card developed by NovaStar.
Power Supply
The power supply uses high quality MEAN WELL LRS-350-5
Input: 200-240VAC
Output: 5V 60A
Cooling method
1 high quality cooling fans installed in each cabinet
Video
P6 576x576mm Outdoor Rental LED Display Screen To Congo
